Attachment – Vibratory Roller Skid Loader

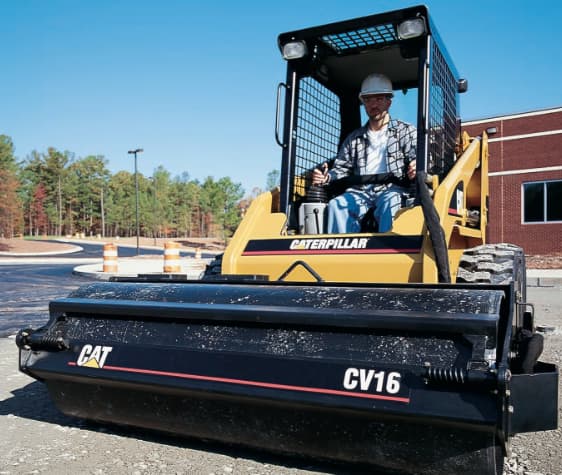

The CAT CV16 Vibratory Drum Compactor attachment transforms a skid steer into a powerful compaction machine for soil, sand, gravel, and asphalt. It’s ideal for preparing surfaces for concrete, paving projects, and general site work.
*Free delivery within 10 miles of New Bloomfield
| Overall Width | 1901 mm (75 in) |
|---|---|
| Drum Width | 1676 mm (66 in) |
| Overall Height | 737 mm (29 in) |
| Overall Length | 965 mm (38 in) |
| Drum Diameter | 610 mm (24 in) |
| Weight | 749 kg (1650 lb) |
| Drive Method | Direct Drive |
| Number of Motors | One |
| Hydraulic Flow Range | 42-83 lpm (11-22 gpm) |
| Hydraulic Pressure Range | 145-227 bar (2100-3300 psi) |
| Drum Oscillation Range | ±15° |
| Drum Frequency | 2000 vpm @ 57 l/min (15 gpm) |
| Dynamic Force | 3972 kg (8740 lb) |
| Total Applied Force | 4737 kg (10,440 lb) |
